Project: OZ-13MS Gundam Epyon Part 4

"Hey Zecks, Zero is saying you have no future. Is Epyon telling you different?"
So today I'm talking about the head. Since this a basically humanoid model, you know if you ignore the large wings, the devilish appearing armor and the whip arm that is, the head is a major focus point for the model. Because of this I wanted to put extra care into it's production and preparation.
The first challenge was making space for the LED in the head. I went with a flat topped LED because it's easier to orient. To help direct the light more I painted the back side with silver pant and then came back with several coats of black paint. I wanted as little light leaking out as possible. In order to accommodate the LED in the head I had to cut away the mounting ports that would normally hold the parts of the head together. The next big trick was building a new neck brace for the head.

Normally the head sits on a ball joint, but with the LED in there the joint would have have to go. So I went to work with some styrene tubing and built a new mounting brace. I took extra care to ensure the negative and positive leads on the LEDs are on the right and left respectively. This way it was going to be easier to connect everything later one.

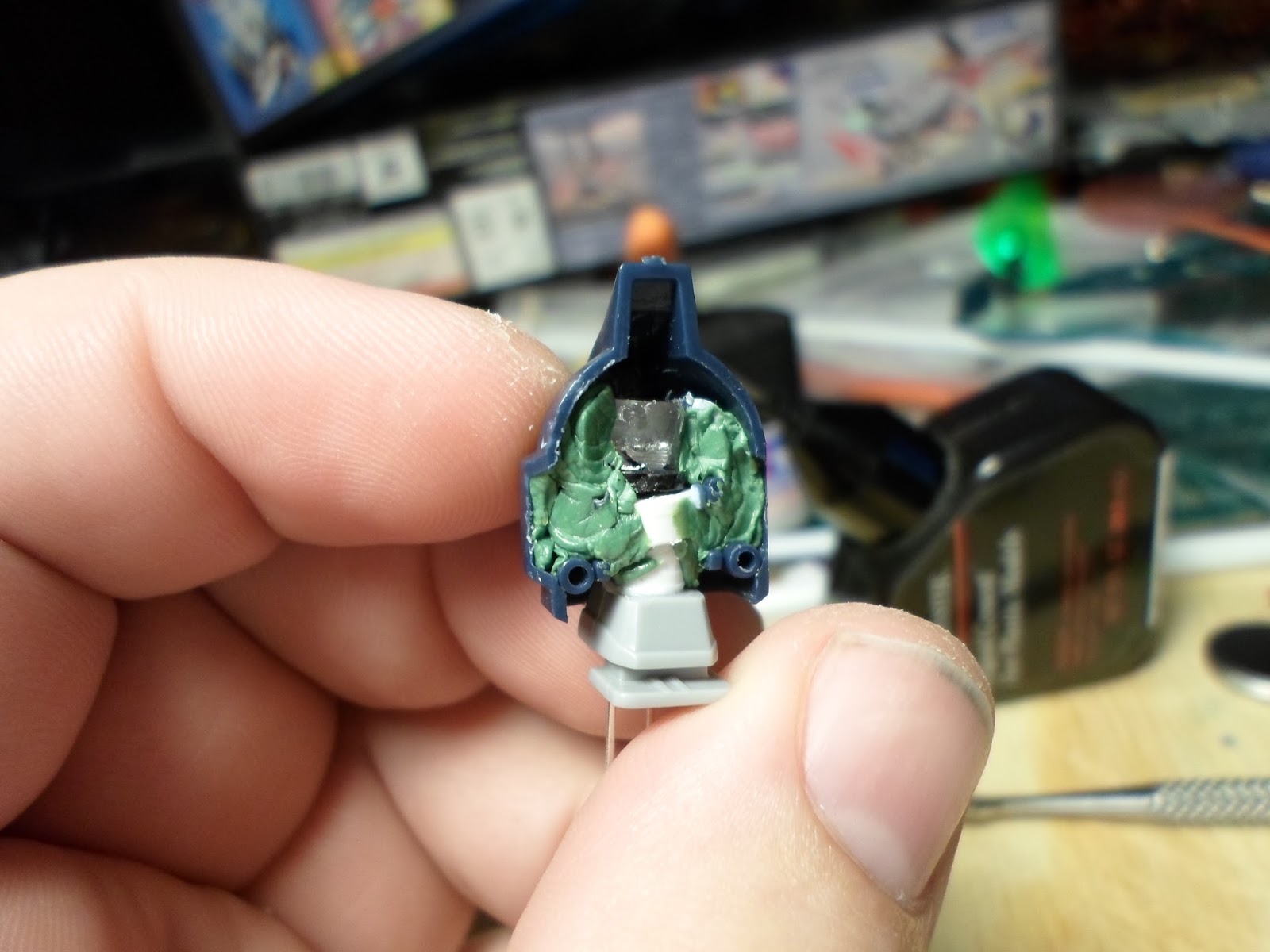

Once the new neck was built, I went back in with some Kneadatite modeling putty and filled in the space. I do not want this LED to move at all.

In order to keep the right look, I went in with some paint markers and marked around the eyes of the green clear plastic. This creates a shadow around the eyes and helps to keep the 'sinister' look of it.
